Box Beam Saw Submerged Arc Welding Machines

JINFENG WELDCUT will provide have 1 year warranty for the XZHB15 Box beam SAW submerged arc welding machines. The main electric elements of the Box beam production lines are selected from the world famous brand that will bring more convenient for Users to find the parts in local without getting from long distance from China. The Box beam SAW submerged arc welding machines are the most advanced and high efficiency equipments to increase the productivity for End-users from steel structures, steel construction and high building.

Structure view

Specifications

NO.	MODEL	XMHB15
1	Box beam width	□300～□1500  mm
2	Box beam height	□300～□1500  mm
3	Box beam length	6000～15000   mm
4	Rail length	20500 mm
5	Rail span	1400mm
6	Welding speed	Depending on welding technology
7	Machine rapid speed	3000      mm/min
8	Air pressure	0.6～0.8 MPa
9	Welding wire diameter	Dia.3~5mm
10	Flux hopper size	50L ×2
11	Welding wire diameter	As per requirements of welding power source
12	Control way	Variable frequency stepless speed regulation



Feature And Application

Box beam SAW submerged arc welding machines is an excellent product launched by Jinfeng Welding and Cutting Company for the steel structure industry. It is a special welding equipment specially designed for welding large and medium-sized box beams (columns). Over the years, after continuous optimization and improvement, the performance has become more perfect, which is welcomed by customers at home and abroad, and the market coverage is relatively high. The device has the following advantages:The machine adopts frequency conversion control with a wide speed adjustment range to meet the needs of different welding speeds. Fast return speed and stable operation.

1.2. Adopt a heavy-duty mechanical weld tracking device to make the weld more uniform and smooth;
The solder recovery system can effectively recover and separate the solder and can be reused;
High degree of automation, reliable operation, simple structure, and convenient operation and maintenance;

1.5. The electrical control system is installed inside the column, integrating the electric control box, operation panel, and column, which is not only concise and beautiful, but also very convenient to operate.

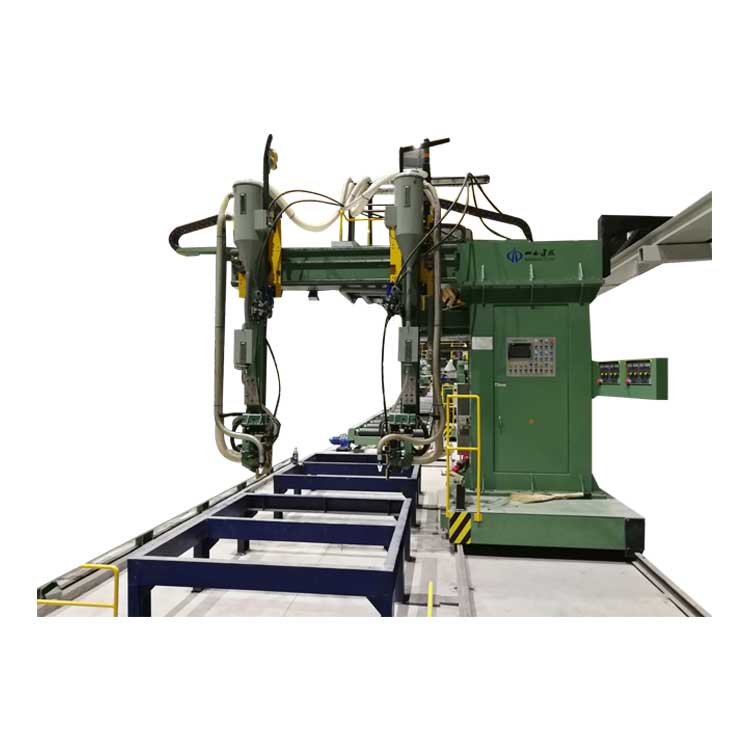

Box-beam SAW submerged arc welding machines  installed in Users’ factory



How to produce a welded Box beam from steel plate?

Following is the production flow chart for the production from plates till H beam and final inspection.
Production flow chart
