H Beam Assembling Machine

HG / ZHG H beam assembling machine

JINFENG WELDCUT is a professional China manufacturer and supplier of H beam assembling machines with affordable price. The H beam assembling machines are high performance machines to execute the tack welding / spot welding to assembling the 2 flanges and 1 web in H shape with CO2/MAG welding technology.

For all the H beam assembling machines that manufactured by JINFENG WELDCUT will have 2 years warranty, and which are Equipped with input roller table , output roller table, Hydraulic station. It can carry out automatic spot welding to assembly the H beam. The HG/ ZHG H beam assembling machines are the highest efficiency machine to increase the productivity for End-users from steel structure, bridge, construction.

Specifications

Feature And Application

H-beam assembling machines is the main equipment to assemble H-Beam steel structure, which fits with several mechanical hands to realize the positioning and clamping of steel plate. It equipped with Hydraulic, pneumatic elements, transducer etc then can automatic, to assemble the T beam or H beam with high efficiency and accuracy. It has the simple operation and high automatic operation. It is mainly applied to tapered beam and straight beam assembling.

Details

The H-beam assembling machines consists of input roller with center alignment device, output roller, main machine, hydraulic system, electric control box etc. The main machine consists of left/right column, flange and web clamping device, gantry structure, top pressing device, pressing wheel device, welding torches, roller transmission device etc.

Structure view

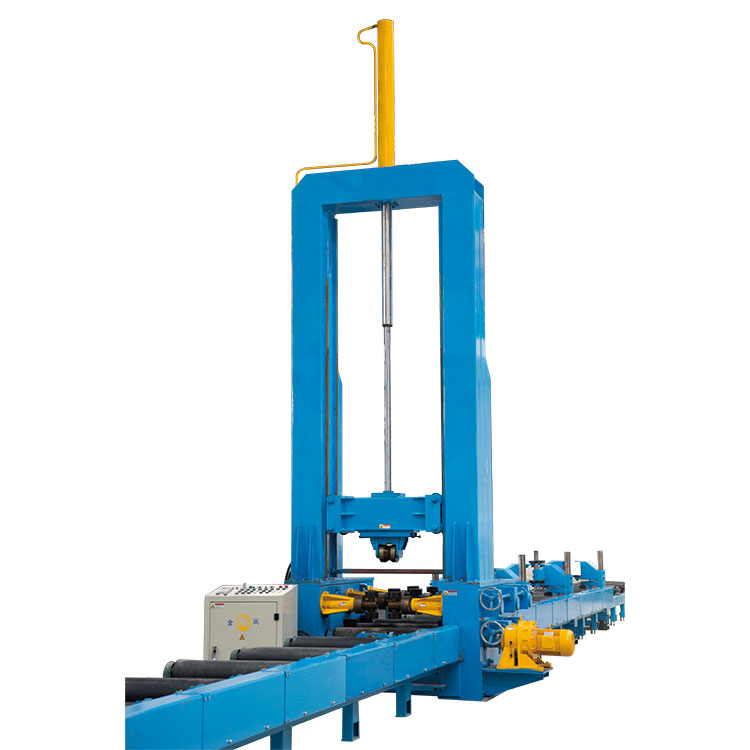

HG H beam assembling machine

ZHG H beam assembling machine- Heavy duty

H-beam assembling machines installed in Users’ factory
