H-beam Welding Machines

JINFENG® is the professional China manufacturer and supplier of H-beam welding machines with affordable price. The H-beam welding machines is the key equipment during the production of the H beam,main for completing H beam’s welding.

Send Inquiry

PDF DownLoad

Product Description

JINFENG® is the professional China manufacturer and supplier of H-beam Welding Machines with affordable price. The H-beam Welding Machines is the key equipment during the production of the H beam,main for completing H beam’s welding.

H-beam Welding Machines Specifications

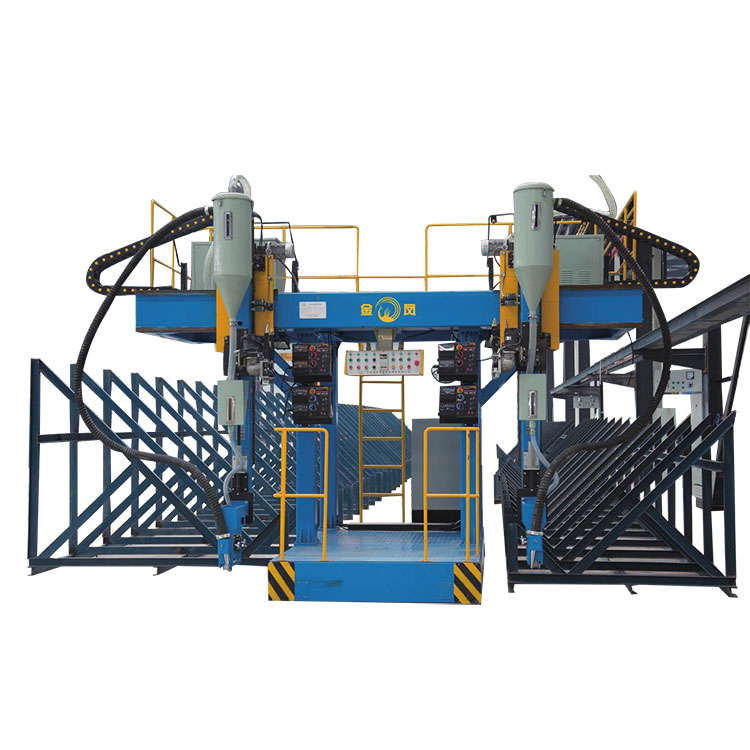

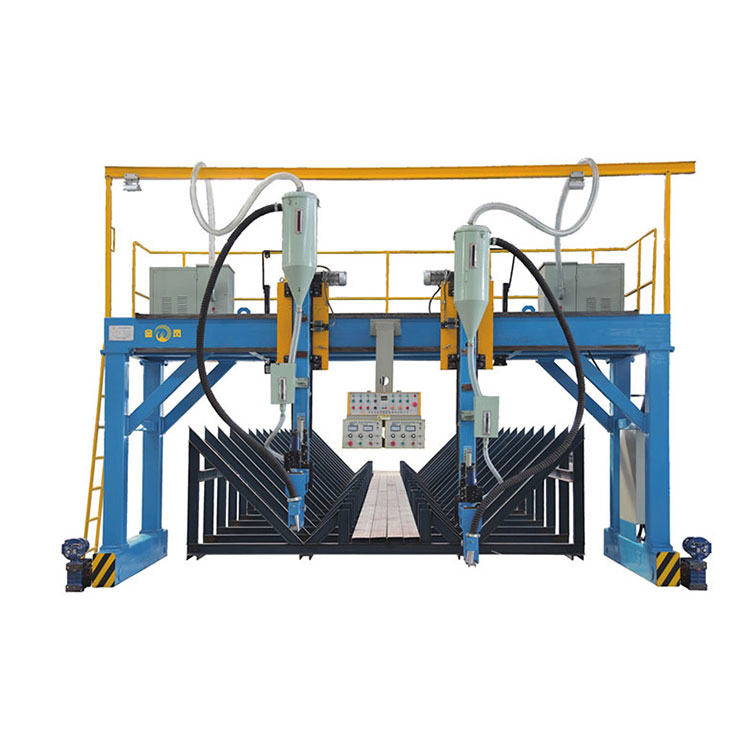

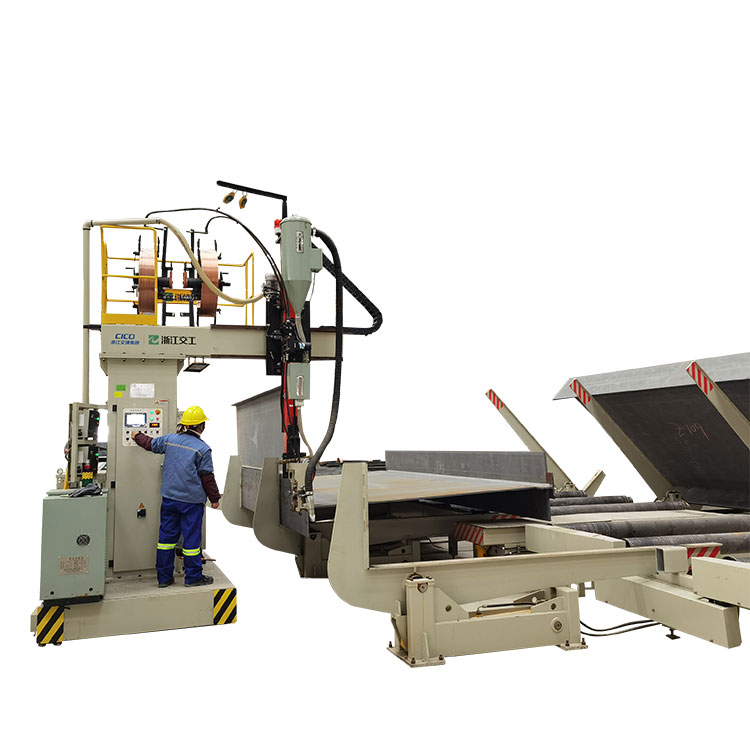

Spec/Model	MZG40/50 Gantry type	TMH14 T type	XMH14 Cantilever type
Rail span	4000/5000mm	1400mm	1400mm
H-beam flange width	200-800mm	200-800/1000mm	200-800/1000/1200mm
H-beam web height	200-1500/1800	≥200mm	≥200mm
Rails	include	include	include
Welding wire	Φ3-Φ5 mm	Φ3-Φ5 mm	Φ3-Φ5 mm
Flux recovery unit	50 kg×2	50 kg×2	50 kg×2
Rapid speed	3000 mm/min	3000 mm/min	3000 mm/min
Welding speed	250-1000 mm/min (according to welding technology)	250-1000 mm/min (according to welding technology)	250-1000 mm/min (according to welding technology)
Control mode	Inverter step less speed adjustment	Inverter step less speed adjustment	Inverter step less speed adjustment
Drive mode	Dual drive	Dual drive	Dual drive
Welding type	Fillet welding in the flat position	Fillet welding in the flat position	Fillet welding in the flat position

H-beam Welding Machines Feature And Application

H-beam Welding Machines has the advantages of compact and delicate structure, easy operation, high automatic, reliable working etc, which is widely applied to building construction, steel structure, machinery manufacture etc. It has the following good points:

After improvement on the welding device, the welding seam more even and smooth

Flux recovery unit can separate and recovery the flux with high efficiency and can reuse the flux again.

Details

The H-beam Welding Machines consists of travel drive device, column, welding arm, lifting mechanism, flux recovery system, auto submerged arc welding system, electric operation system etc.
