H Beam Straightening Machine

JINFENG WELDCUT is a professional China manufacturer and supplier of H beam straightening machines with affordable price. The H beam straightening machines are high performance machines to press the flange of the H beam to be straight level, to remove the mushroom deforming of the flange of H beam , which is caused by the welding shrinking from the heat created by submerged arc welding.

Product Description

JZ40/YJZ60A/YJZ60B/YJZ80 H Beam Straightening Machine

JINFENG WELDCUT is a professional China manufacturer and supplier of H Beam Straightening Machines with affordable price. The H Beam Straightening Machines are high performance machines to press the flange of the H beam to be straight level, to remove the mushroom deforming of the flange of H beam , which is caused by the welding shrinking from the heat created by submerged arc welding.

For all the H Beam Straightening Machines that manufactured by JINFENG WELDCUT will have 2 years warranty, which are the highest efficiency machine to increase the productivity for End-users from steel structure, bridge, construction.

Specifications

Model		JZ40	YJZ60A	YJZ60B	YJZ80B	YJZ80C
Type		Mechanical	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Flange width(mm)		200-800	200-800	200-800	200-800	200-1200
Web height (mm)		200-1500	200-1800	220-2500	450-1800	450-3000
Flange thickness	Q235	6-40mm	6-60mm	6-80mm	6-100mm	6-100mm
Flange thickness	Q345	6-30mm	6-40mm	6-60mm	6-80mm	6-80mm
Input roller table		10m, idler	12m, idler	12m, power	12m, Hydraulic
Output roller table		10m, idler	12m, idler	12m, power	12m, Hydraulic
Straightening speed		11m/min	8.5m/min	6.7m/min	6.0m/min	4.7m/min
Hydraulic station		NO	YES	YES	YES	YES
Machine power		11kw+1.1kw*2 =13.2KW	11kw+4KW =15KW	11KW+4KW =15KW	15KW+7.5KW +2.2KW*2 =26.9KW	22KW+7.5KW +3KW*2 =35.5KW
Hydraulic pressure		NO	16 Mpa	16 Mpa	16 Mpa	16 Mpa

Feature And Application

H-beam straightening machines is suitable for straightening the welded "T" and "H" profiles. After the profile is welded, the flange plate is deformed due to the shrinkage of the weld, it must be corrected to become a qualified workpiece. So this machine is a better flange straightening equipment. The machine has large straightening force, fast straightening speed, small footprint, low energy consumption, easy operation, and reliable work. It is especially suitable for steel construction, shipbuilding industry and other mass production enterprises of "T" or "H" beam.

Details

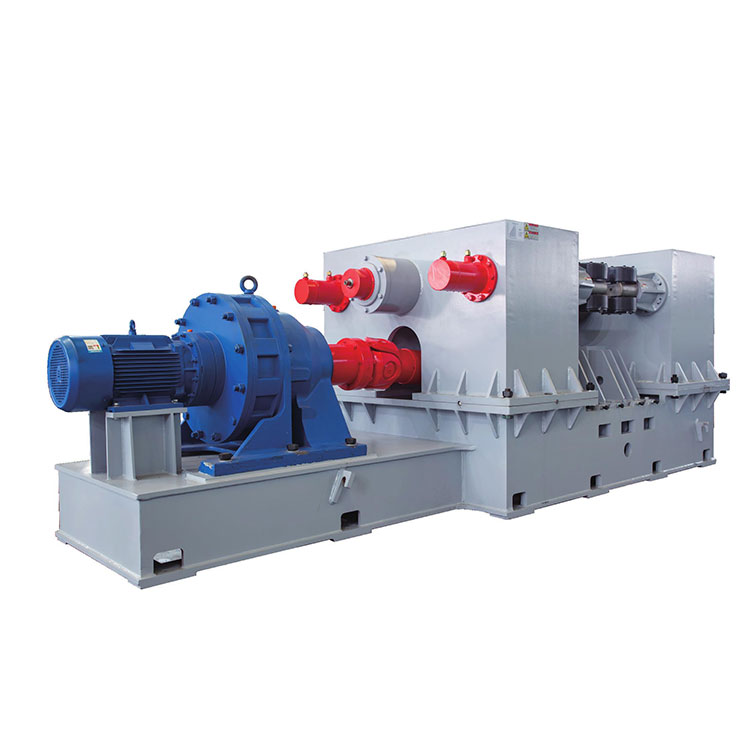

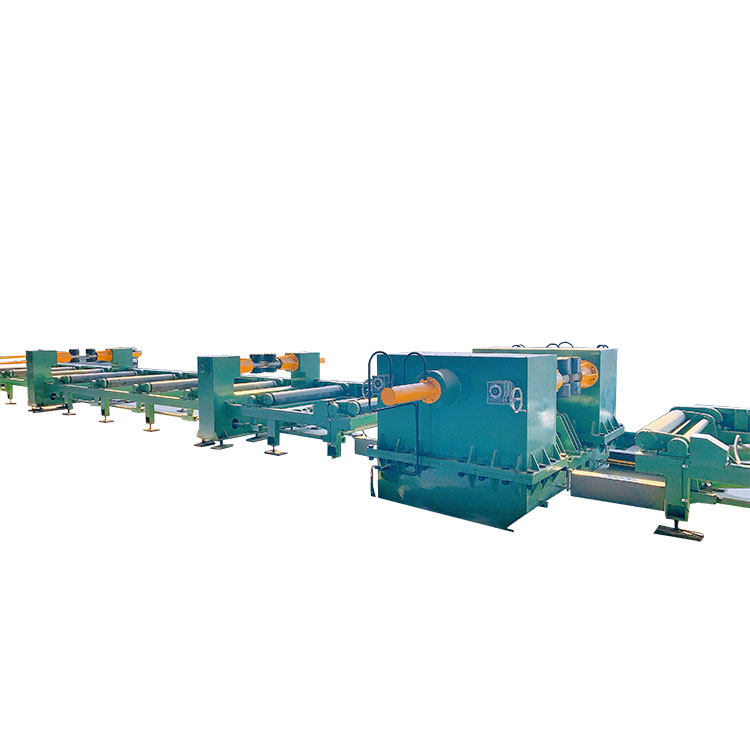

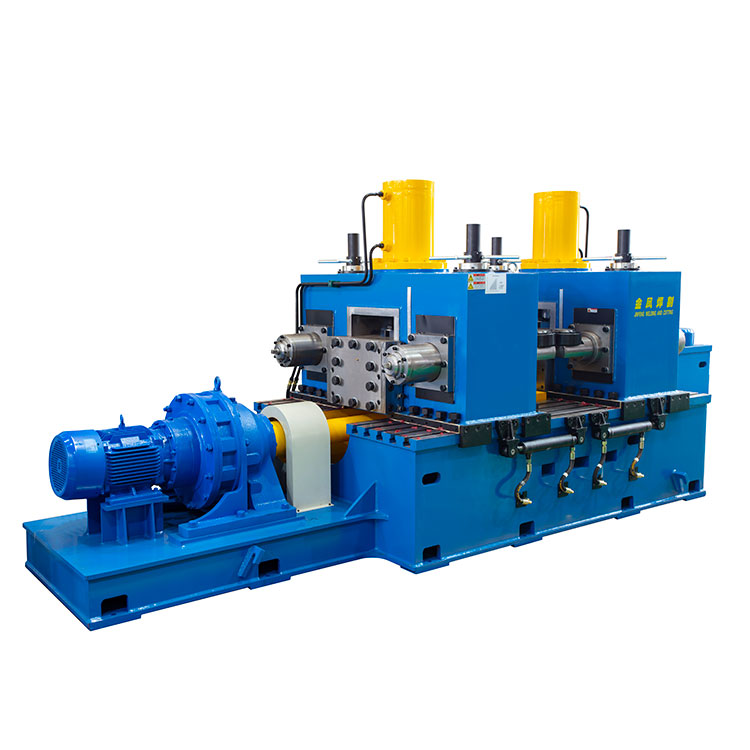

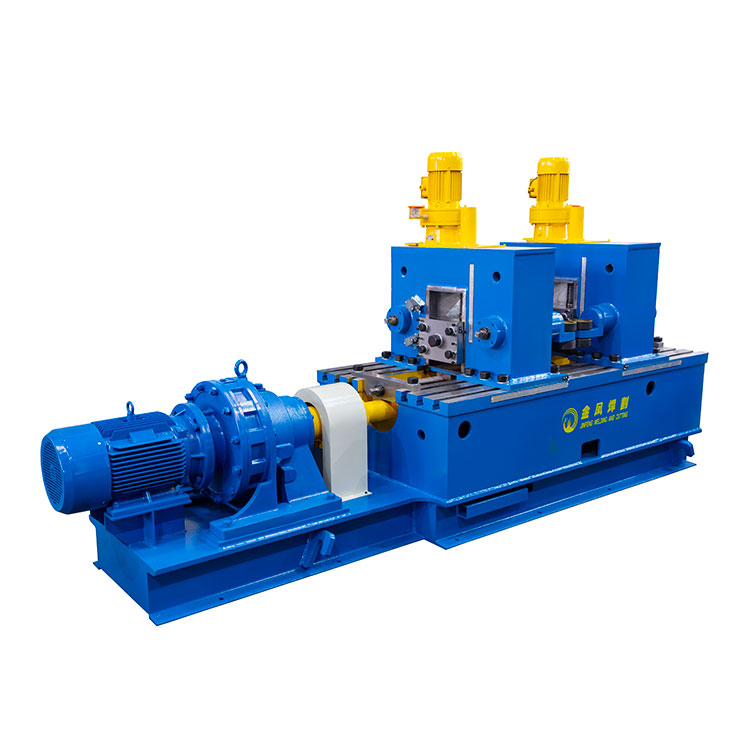

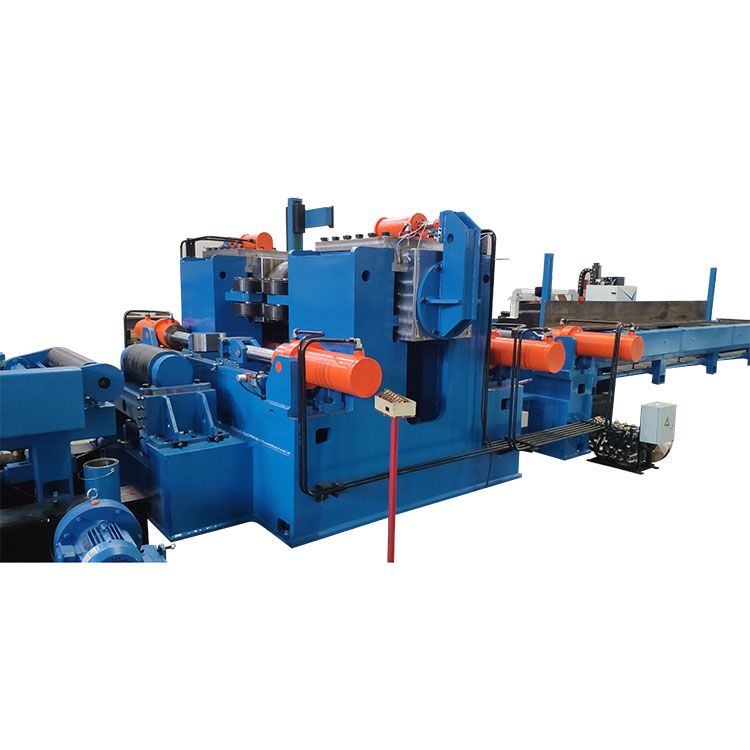

The H-beam straightening machines consists of base seat, left/right box structure, web clamping device, main transmission mechanism, hydraulic and electrical control system, and transporting conveyor roller etc.
