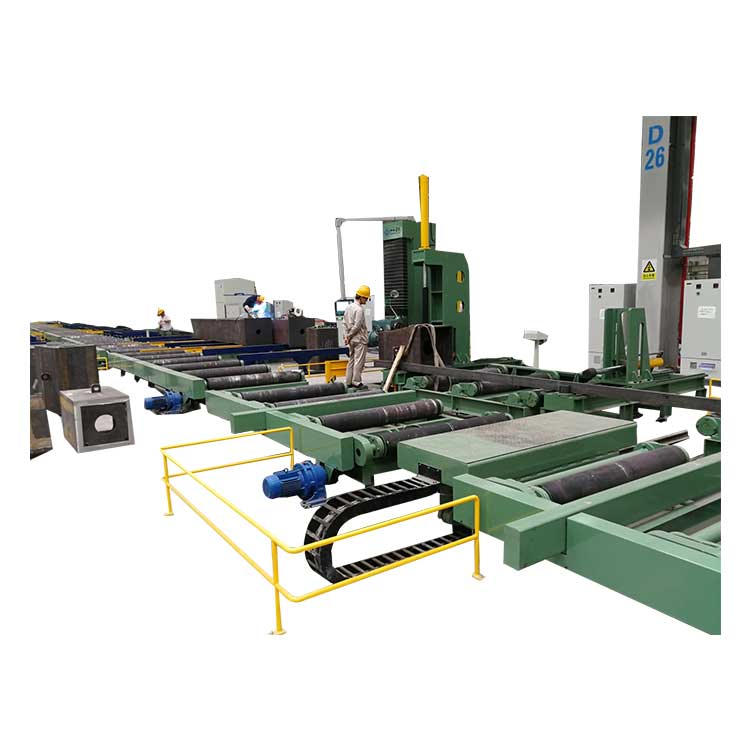

Box Column End-face Milling Machines

Box column End-face milling machines are high performance equipment in the line to produce box beam, which is manufactured by JINFENG WELDCUT who is the professional China manufacturer and supplier of Box column End-face milling machines with affordable price. The Box column End-face milling machines provide more safety and high efficiency for milling the end-face of the box beam or H beams that needed for the Box or H beams production.

Send Inquiry

Product Description

JINFENG WELDCUT will provide have 1 year warranty for the Box column End-face milling machines. The main electric elements of the Box beam production lines are selected from the world famous brand that will bring more convenient for Users to find the parts in local without getting from long distance from China. The Box column End-face milling machines are the most advanced and high efficiency equipments to increase the productivity for End-users from steel structures, steel construction and high building.

Structure view

Single end-face milling machine without to work with roller table and cross carts.

Specifications

1	Maximum milling width	2000 mm
2	Maximum milling height	1500 mm
3	Milling head motor power	7.5 kW
4	Spindle rotation speed of milling head (manual shift transmission)	110-630 r/min
5	Maximum cutter head diameter of milling head	Φ250 mm
6	Outer diameter of spindle end of milling head	Φ128.57 mm
7	Milling head spindle end number	ISO 50
8	Inner taper of milling head spindle	7:24
9	Expansion and contraction amount of milling head spindle	100 mm
10	Horizontal feed motor power	2.9 kW
11	Lift feed motor power	1.8 kW
12	Power of workbench pump station	4 kW
13	Lifting and lowering of milling head	Stepless speed regulation
14	Horizontal slide feed	Stepless speed regulation
15	Hydraulic system pressure	10 MPa

Feature And Application

Box column End-face milling machines is an excellent product launched by Jinfeng Welding and Cutting Company for the steel structure industry. It is a milling machine specially designed for milling on the end-face of box beams ( box columns) and H beam. Over the years, after continuous optimization and improvement, the performance has become more perfect, which is welcomed by customers at home and abroad, and the market coverage is relatively high. The device has the following advantages:

1.1Machine bed-frame, column are fabricated with heavy steel in one piece, which having high strength, good resistance to shocking.

1.2Adopting large power milling head, which having fast speed of milling with high efficiency.

1.3The bed-frame is cover with metal protection shield, good strength and high performance.

Simple and convenient operation, reliable working, simple structure, easy maintenance.
