Box beam welding lines have become a cornerstone in modern steel fabrication, offering precision, speed, and repeatability that traditional welding processes struggle to match. Designed to handle a wide range of steel profiles, including H-beams, I-beams, and complex box beams, these automated lines ensure consistent weld quality across large-scale structural components.

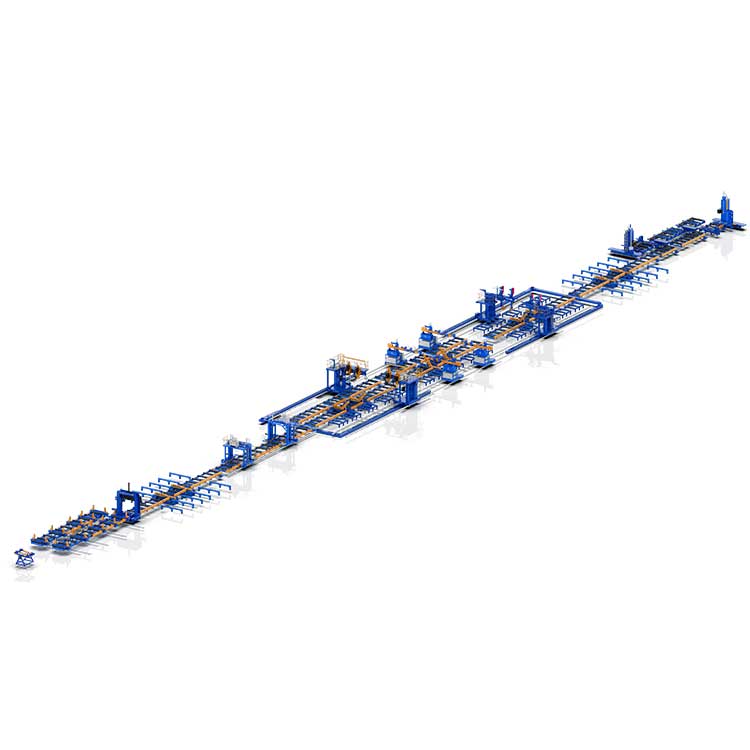

At its core, a Box Beam Welding Line integrates multiple automated stations—positioning, welding, cutting, and quality inspection—into a seamless workflow. By reducing manual intervention, it not only boosts production efficiency but also significantly enhances the accuracy of welds, minimizing defects such as warping, misalignment, or inconsistent penetration.

Key Technical Specifications of Box Beam Welding Line:

The combination of automation, precision control, and integrated monitoring systems ensures that box beams produced on such lines meet stringent structural standards required in construction, shipbuilding, and bridge engineering.

Why Should Manufacturers Choose a Box Beam Welding Line Over Traditional Methods?

The choice of a Box Beam Welding Line brings numerous benefits, from cost reduction to enhanced product quality. Traditional manual welding, even when performed by experienced operators, faces limitations in repeatability and speed. Welding large structural beams often requires significant manpower and time, leading to higher labor costs and increased potential for human error.

Operational Advantages of Box Beam Welding Lines:

1. High Efficiency: Automated systems can operate continuously with minimal downtime, drastically increasing throughput compared to manual welding.

2. Precision and Consistency: The line maintains exact positioning and weld parameters, producing uniform weld quality across every beam.

3. Material Savings: Optimized welding paths and controlled heat input reduce excess material use and minimize deformation.

4. Enhanced Safety: Automation minimizes operator exposure to high temperatures, sparks, and fumes.

5. Flexibility: Capable of welding a wide range of beam sizes and configurations without extensive retooling.

Additionally, the integration of monitoring and feedback systems allows real-time detection of welding defects, ensuring immediate corrective action and reducing costly rework. By centralizing welding, cutting, and inspection, the Box Beam Welding Line streamlines production, making it ideal for high-volume projects.

How Does the Box Beam Welding Line Operate and Integrate into Modern Fabrication Workflows?

The workflow of a Box Beam Welding Line is designed to maximize efficiency while maintaining high-quality outputs. The process generally follows these steps:

1. Beam Loading and Positioning: Raw steel plates and sections are automatically fed into the line using lifting and positioning equipment. PLC-controlled clamps ensure precise alignment.

2. Welding Process: Using robotic arms equipped with SAW or MIG torches, the line performs longitudinal and transverse welds with exact parameter control. Weld seam tracking systems ensure uniform bead size and penetration.

3. Cutting and Trimming: Automated plasma or oxy-fuel cutting stations trim the beams to exact dimensions, ensuring consistent profiles for assembly.

4. Inspection and Quality Control: Integrated ultrasonic or laser inspection stations detect defects such as cracks, porosity, or misalignment, providing feedback to the control system for immediate correction.

5. Unloading: Finished beams are transported to storage or directly to the next stage in the construction process.

Common Questions About Box Beam Welding Lines:

• Q: What types of steel profiles can be welded using this line?
  A: The line can handle a wide variety of steel profiles, including H-beams, I-beams, box sections, and channel beams, typically ranging from 150 mm to 1200 mm in height and up to 800 mm in width, allowing versatile applications in construction, bridge building, and shipyards.

• Q: How does the system ensure weld quality and minimize defects?
  A: Precision robotic arms, combined with automated seam tracking and real-time monitoring, maintain consistent welding parameters. Integrated inspection stations detect defects early, enabling immediate corrective action to ensure high-quality output with minimal rework.

Integrating the Box Beam Welding Line into existing production facilities enhances operational efficiency, reduces manual labor, and ensures that structural components meet modern engineering standards.

What Are the Future Trends and Innovations in Box Beam Welding Technology?

As steel fabrication demands continue to evolve, Box Beam Welding Lines are embracing technological innovations to meet higher standards of efficiency, automation, and sustainability.

1. Smart Automation: AI-driven predictive maintenance and process optimization reduce downtime and further improve weld quality.

2. Energy Efficiency: Modern lines incorporate energy-saving features such as regenerative power systems and precise heat control to reduce electricity consumption.

3. Modular Design: Flexible, modular systems allow manufacturers to scale production or adapt to new beam sizes without large capital investments.

4. Data-Driven Manufacturing: Integrated data collection and analytics allow detailed tracking of each beam’s production history, enabling quality assurance and traceability.

5. Sustainability Focus: Minimizing material waste, optimizing energy use, and implementing eco-friendly welding processes contribute to greener production practices.

Manufacturers looking to stay competitive are increasingly adopting these innovations to maintain both production efficiency and structural integrity.

Box Beam Welding Lines are central to modern fabrication, combining speed, precision, and flexibility. With the ability to meet strict structural standards and adapt to complex projects, these systems are poised to become standard equipment for large-scale steel manufacturing. For companies seeking reliability and advanced technology, JINFENG WELDCUT provides high-quality Box Beam Welding Lines designed to maximize productivity while ensuring consistent weld performance.

Contact Us to learn more about how JINFENG WELDCUT can transform your steel fabrication operations with advanced Box Beam Welding Line solutions.
